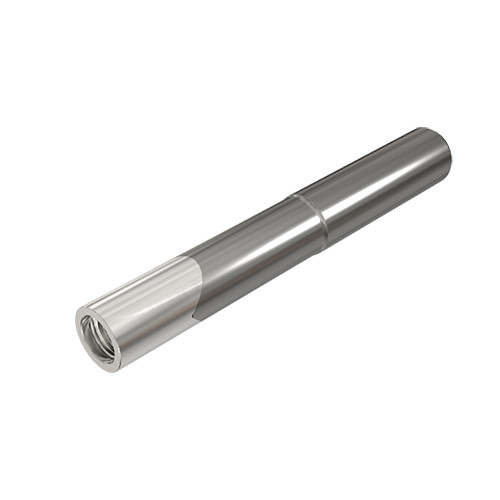

MM S-A-L70/25-C100T15C-CH
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

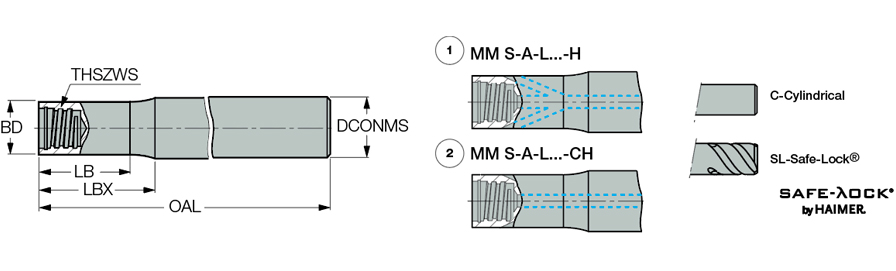

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T15 | Body Length (LB) | 2-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 7″ | Rotational Speed Maximum (RPMX) | 19740 Rev/min |
| Body Length Maximum (LBX) | 2.62″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 0.941″ |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
