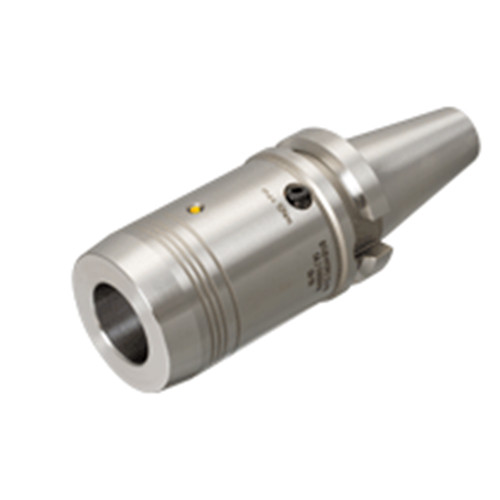

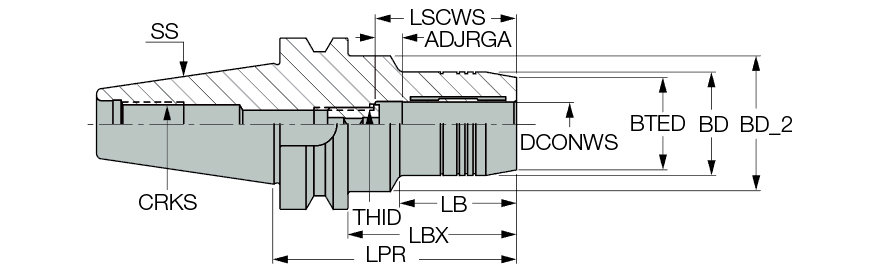

BT30 FC HYDRO 20X90
Hydraulic Holder ; 20 mm Hole Dia. ; #63 Shank Dia. ; 68 mm Body Length ; 42 mm Body Dia. ; 30 Shank Size ; 4.64″ OAL ; HSK Shank
| Connection Diameter Machine Side (DCONMS) | #63 | Shank Size (SS) | 30 |
| Body Length Maximum (LBX) | 3.38″ | Coolant Supply Property (CSP) | Coolant Thru |
| Body Length (LB) | 68 mm | Nose Length | 1.5354″ |
| Body Diameter (BD) | 42 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 90 mm | Body Material | Steel |
| Overall Length (OAL) | 4.64″ | Connection Code Machine Side (CCMS) | BT |
| Shank Type | HSK |
Product Features
| Family Description | Hydraulic chucks with MAS-BT face contact form AD shanks. for Semi-Finish and finish applications | Country of Origin | Germany |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used Reduction sleeves are available for 12, and 20 mm bore diameters (order separately) Clamping wrench (wrench HYDRO HEX 4) and test bar to be ordered separately |
Shipping Info
Package Weight
2.233
